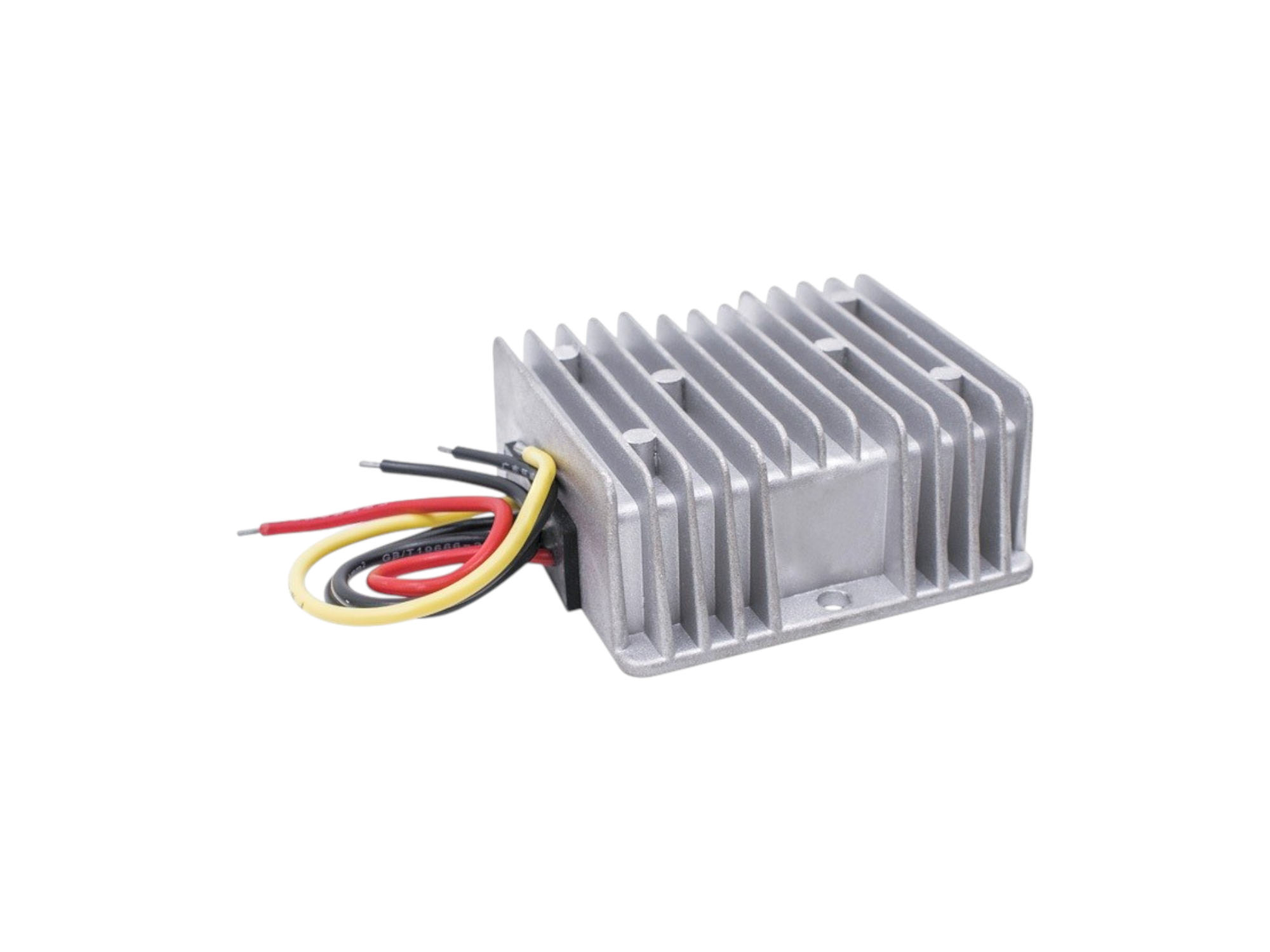

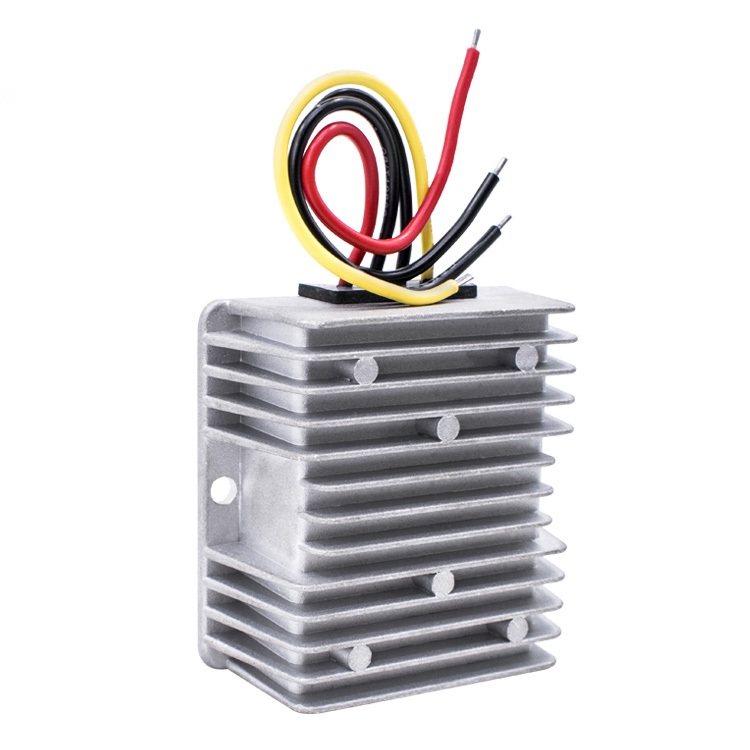

84V-12V CONVERTER
The 84V–12V DC-DC voltage converter provides a stable 12V output with 10A current. It accepts input voltages from 20V up to 84V, making it ideal for high-voltage drive motor systems where control electronics such as servo motors require a reliable 12V supply.
Input voltage | 20-84VDC |
Output voltage | 12VDC |
Output current | 10A |
Power | 120W |
Efficiency | 92% |
Working temperature | -35℃ to +80℃ |
Waterproof rating | IP68 waterproof |
Weight | 0.26kg |
Size | 74*74*32mm |
